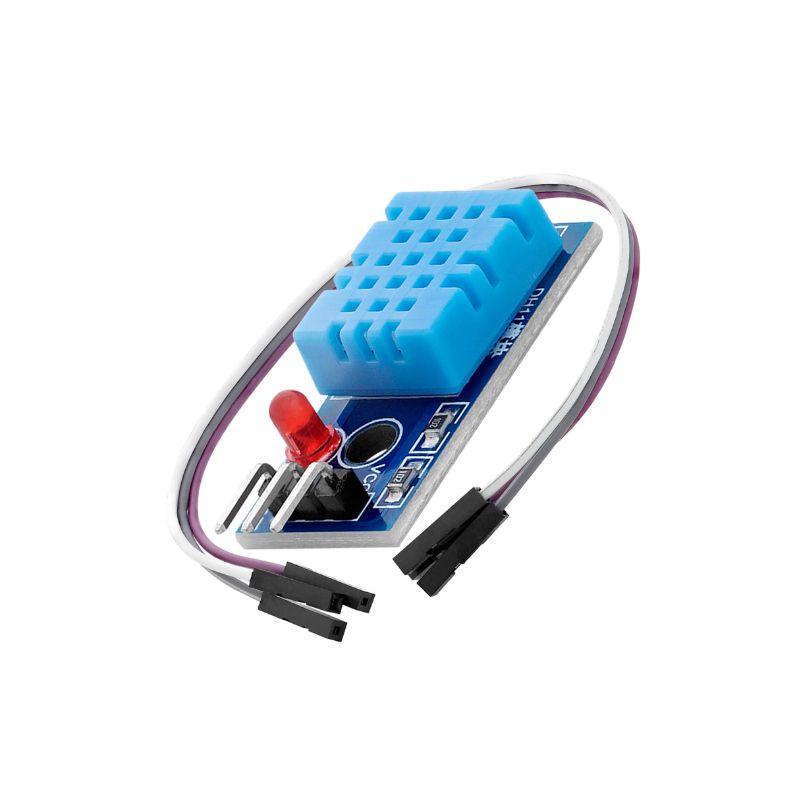

DHT11 Temperature And Humidity Sensor Module with LED

  • Input Supply voltage (VDC): 3.3 ~ 5
  • Supply Current (mA): measurement 0.3mA standby 60μA.
  • Temperature measurement range: 0~50 degrees
  • Temperature measurement error: ±2 degrees
  • Humidity measurement range: 20%~95%RH
  • Humidity measurement error: ±5%RH

රු380.00

Ordered:0
Items available:14

14 in stock

wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp

The DHT11 Temperature And Humidity Sensor Module with LED is a small humidity and temperature sensor that you can connect to your Arduino and get readings for temperature and humidity in the environment.


Features:

  1. DHT11 sensor with PCB and LED indicator along with cable; 3 to 5V power and I/O, 4 pins with 0.1″ spacing
  2. The board has pre-built 4.7K or 10K resistor, which you will need to use as a pull-up from the data pin to VCC.
  3. 2.5mA max current use during conversion (while requesting data)
  4. Good for 20-80% humidity readings with 5% accuracy
  5. Good for 0-50°C temperature readings ±2°C accuracy.

Package Includes:

1 x DHT11 Temperature And Humidity Sensor Module.

3 x Female to Female Connecting cable.
